PCK209型智能開口閃點測定儀

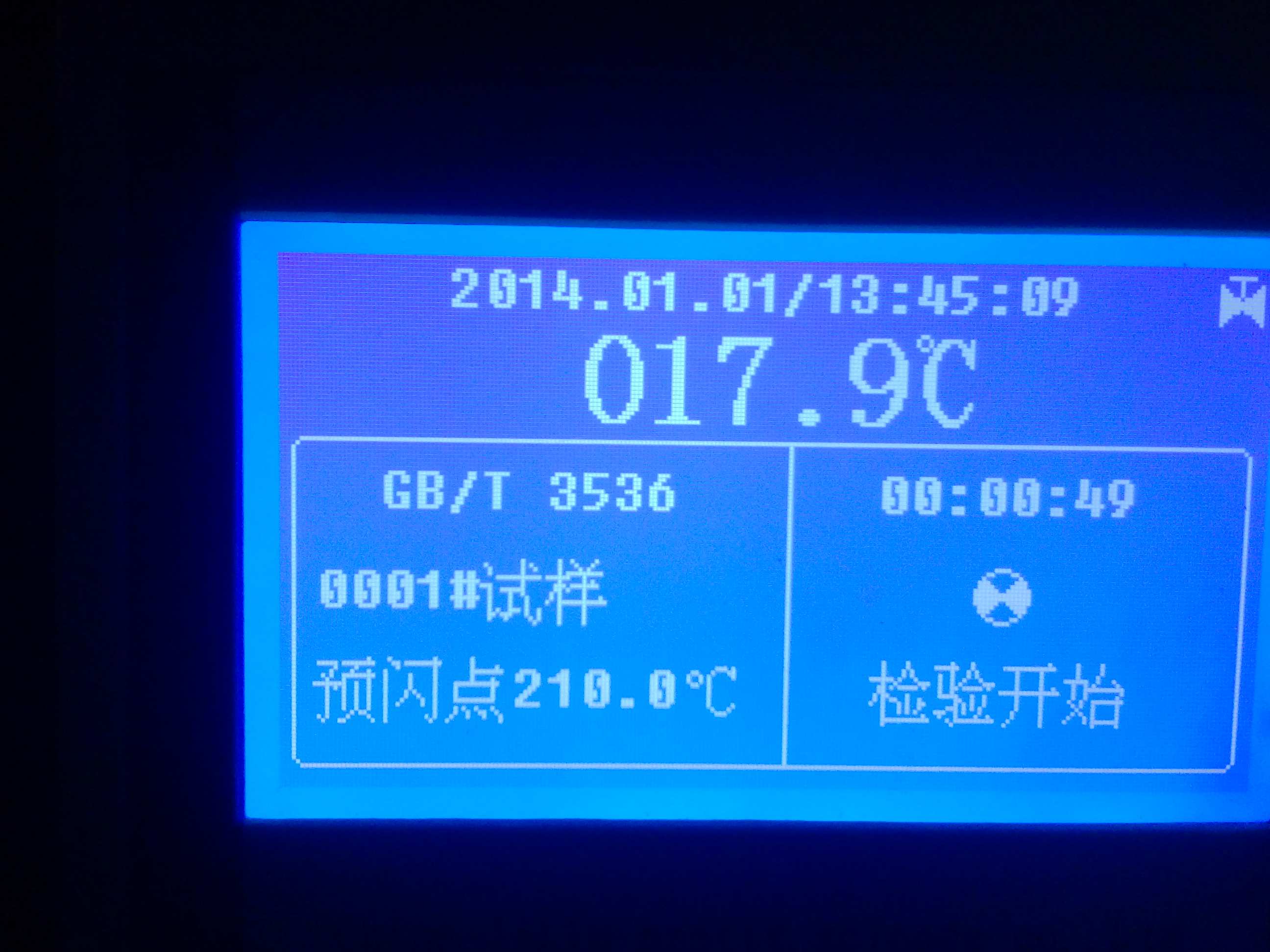

本儀器用于測定石油產品開口閃點值。中文操作界面、液晶觸摸式鍵盤、向?qū)讲藛慰呻S意調節升溫速率，中文打印，(可選)232計算機管理接口。使用標準 ：GB/T3536-2021
儀器特點 ：
采用分體組裝結構；
自動修正大氣壓強的影響并計算修正值；
配有智能時鐘顯示；
掃描、點火、檢測、風冷自動完成；
100次試驗結果記錄可查詢并打��；
獨立閃點工作站（可選）
技術參數 ：
測量范圍 ：室溫～400℃
分辯率 ：0.2℃
試驗火源 ：石油液化氣/或丁烷氣體
重復性 ：≤4℃
再現性 ：≤6℃
使用環境 ：（環境溫度）10～30℃（相對濕度）小于80%RH
功 率 ：600W
電源電壓 ：AC220V±10%
頻 率 ：50Hz±5%
外觀尺寸 ：310mm*300mm*360mm
重 量 ：14kg
PCK209 intelligent opening flash point tester
This instrument is used to determine the petroleum products open flash point value. Chinese operation interface, LCD touch keyboard
Wizard style menu can be adjusted heating rate, the Chinese printing (optional) 232 computer management interface.
Using standard: GB/T3536-2008
Instrument features:
Using split assembled structure
Automatically corrected atmospheric effects and to calculate the correction value;
With intelligent clock display
Done automatically scan, ignition, detection, air-cooled.
100 test results are recorded inquiries and print
Independent Fp workstation (optional)
Technical parameters:
Measuring range: room temperature to 400 ° C
Distinguish: 0.2 ℃
Experience fire source: liquefied petroleum gas and / or butane gas
Amount of repeatability: ≤ 4 ℃
Cover reproducibility: ≤ 6 ° C
The use of the environment: ambient temperature 10 to 30 ° C (relative humidity) is less than 80% RH
Power: 600W
Power supply voltage: AC220V ± 10%
Frequency: 50Hz ± 5%
Dimensions: 310mm * 300mm * 360mm
Weight: 14kg |
